The turbo model says a great deal about the features of your turbocharger.
Do you know how to ensure you identify which model is fitted to your vehicle?
Checking our guide that explaining the nameplate characters.
Garrett T Series
T04 = frame size (74.2mm turbine)
B = the design
BB Ball Baring
CT Ceramic Turbine Wheel
GT GT Series Turbos
T Bolted Joint Center Housing/Turbine Housing
TA Poppet Valve Wastegate W/G T3
TB Flapper Valve W/G T3, T25, T2, T15
TBP Wastegated T4, T45, etc.
TB28 Hybrid T3 Compressor/T25 Turbine Housing
TB41 Continuation of T04B
TD Known as VNT (Variable Nozzle Turbine)
TL Water-Cooled Turbine Housing
TV V-Band Center Housing/Turbine Housing/Compressor Housing
TW Water-Cooled Turbine Housing
T04 Non Scroll Type (Torus) Compressor Housing
T04B Scroll Type Compressor Housing
T04E Upscaled T04B (Larger Diameter Compressor Wheel)
T04S T4 except Compressor Wheel
Garrett GT Series
Turbo model GT4082SN:
GT40 = (77mm turbine);
82 = 82mm compressor wheel
S = single passage bypass turbine
N = ported shroud.
A VAT (Variable A/R Turbine)
B Boreless
C Ceramic
D Dual Passage Bypass
E Elbow, Integrated (Monoblock Turbine Housing)
H Separate Exhaust Elbow
L Water Cooled Center Housing
M Mainfold and Turbine Housing Integrated
N Ported Shroud Compressor
R Rolling Element (Ball) Bearings
S Single Passage Bypass
T Titanium Aluminide Turbine Wheel
V Multi Vane Variable Geometry Turbine
W Water Cooler Turbine Housing
Z Combined Journal/Thrust Bearing

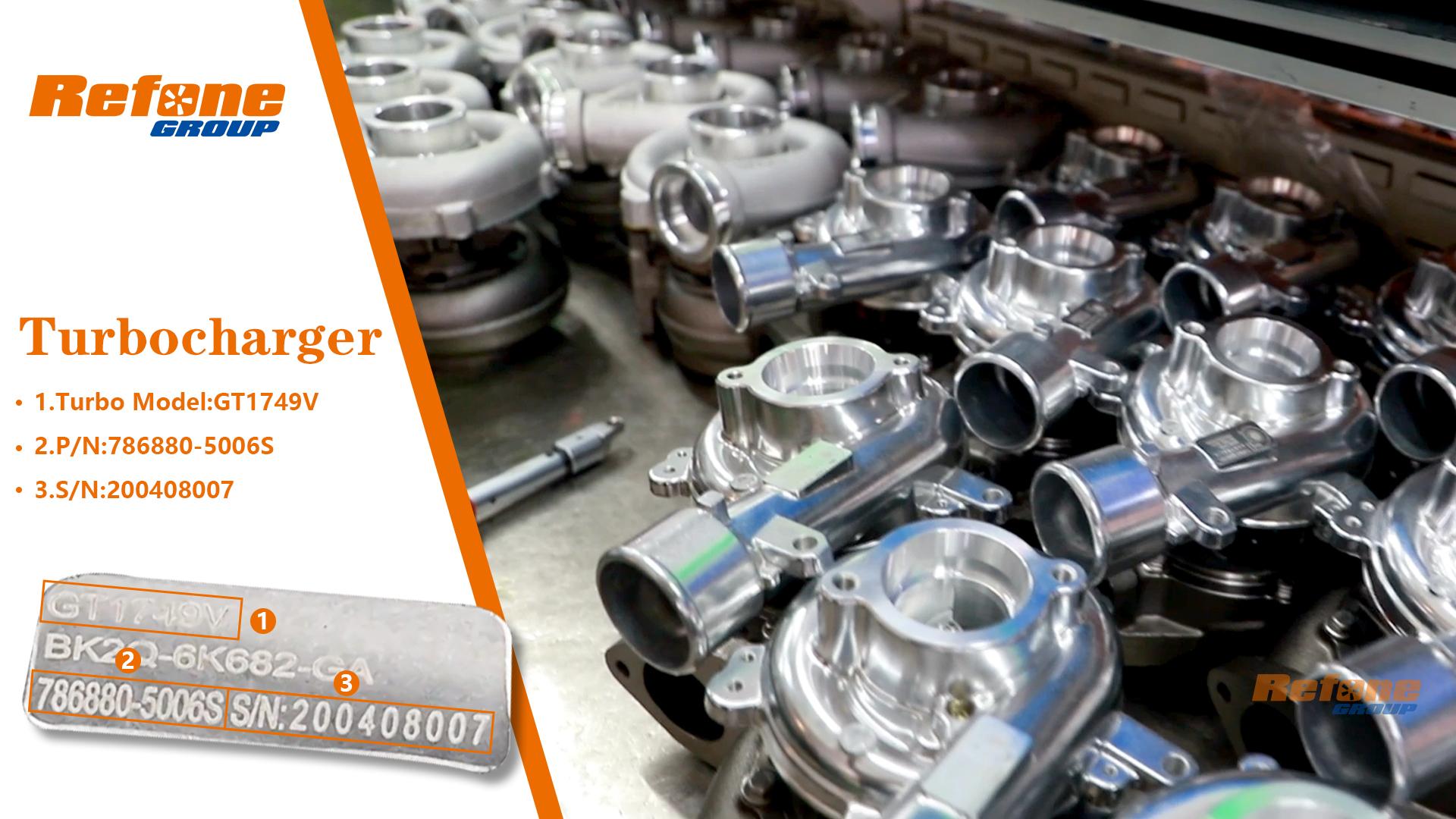

Same as part number,turbo model also the important information on the turbo housing.You must to get this for service and parts support.
Know more about you turbo model meaning that can help you order a correct replacement turbo you need.
