Refone New performance Turbocharger-Dual Ceramic Ball Bearing

2022-07-04

Journal bearing traditional bearing systems consist of a set of journal bearings and a thrust bearing, the Rolling Alignment Bearing is a single-sleeve system with a set of angular contact ball bearings at both ends.


The cartridge ball bearing system has two bearings and each bearing contain 9 ceramic balls. And radial loads pioneered by garrett while bearing turbos have a bunch of balls sandwiched. Between an inner ring that connects to the shaft.

Ball Bearing turbochargers spool up 15% faster than traditional journal bearings. This produces an improved response that can be converted to quicker 0-60 mph speed.

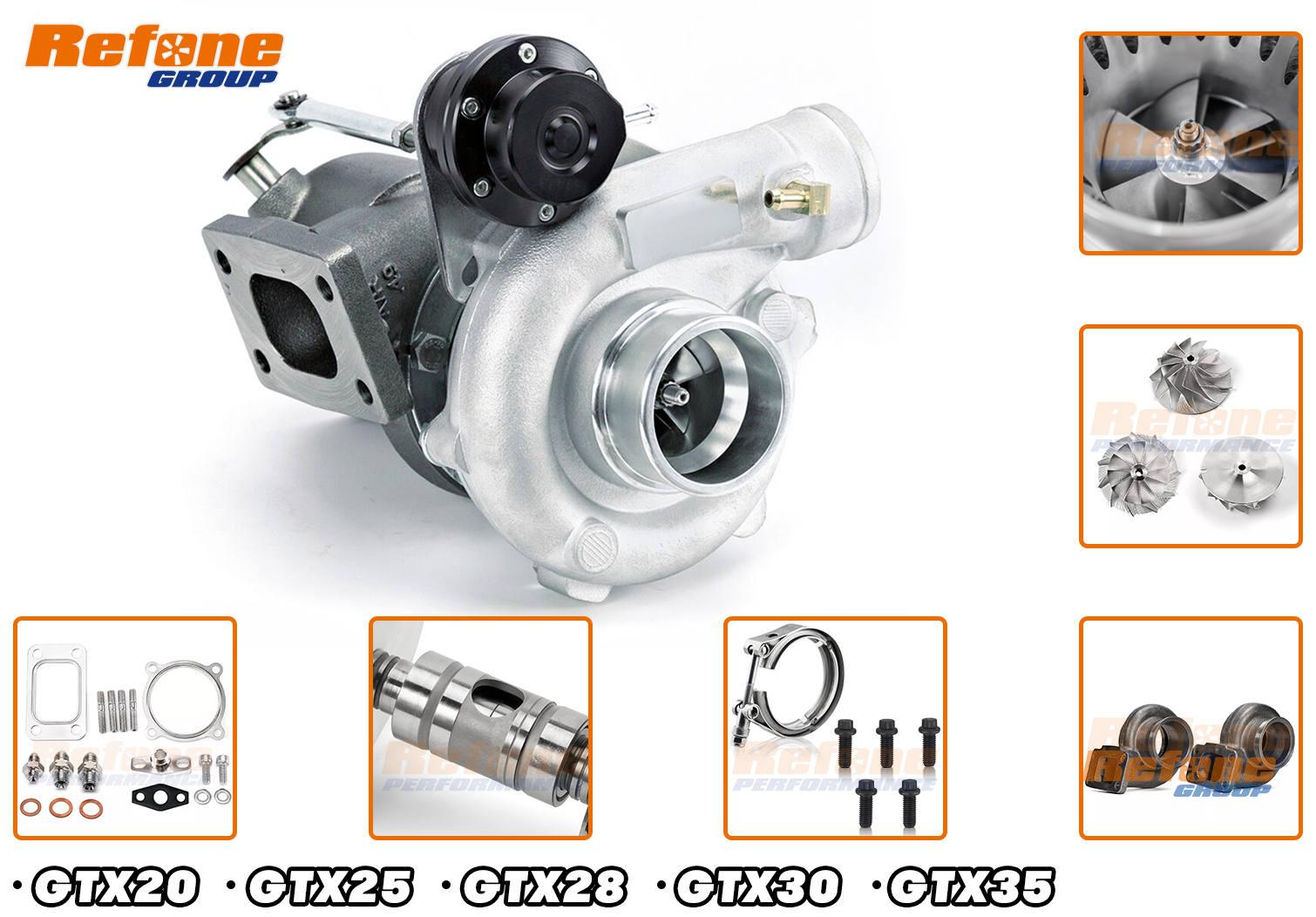

At present, Refone has developed 5 models including GTX20, GTX25, GTX28, GTX30, GTX35, and more models of turbocharger are being developed.


FeaturesRefone New performance Turbocharger-Dual Ceramic Ball Bearing
  • Anti-surge compressor housing design
  • Light weight design CNC machined billet compressor wheel
  • Optional turbine housing A/R
  • Optional  Bolt an V-Band clamp turbine outlet flange
  • Dual ceramic ball bearing
  • Include water/oil feed and flange gaskets


Refone has been committed to providing high-quality and high-standard products to the global market, please feel free to contact Refone.
