Product Details

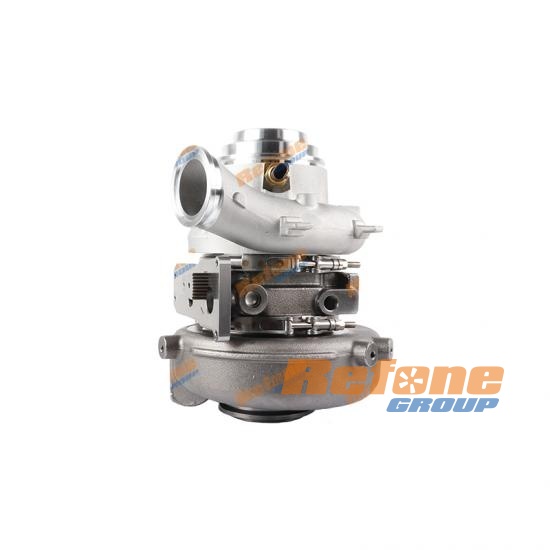

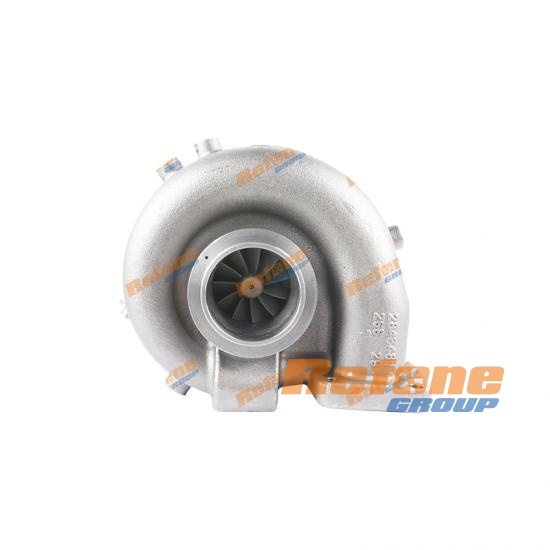

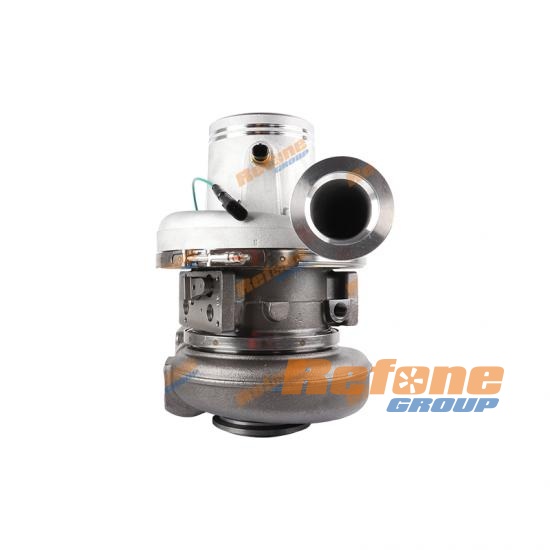

HE561V 4309076RX Turbo for Cummins/Volvo Various Truck with ISX EGR/ISX1/ISX 07 15.0L

Buy turbo Parts and Cartridge,turbo core for Cummins from Refone Group TURBO, a leading manufacturer and supplier of multiple turbocharger and turbo parts.

REFONE can supply high quality turbocharger Cartridge with high speed VSR300 balancing report.

More than 500+ models of turbo Cartridges are available in stock for quick shipping arrangement.

Besides Refone can also offer CHRA parts,such as shaft wheel,compressor wheel,bearing housing,turbo thrust bearing and turbo journal bearing,shaft wheel,compressor wheel,bearing housing,nozzle ring parts for land rover car.

Description

Billet Wheel(Material Upgrade 2618A)
Inconel 713C Turbine Wheel
Water Cooled
Original Oil Seal
With Temperature Sensor
With Rotating Speed Sensor
Nozzel Ring With Cobalt(Optional)
Nitriding Nozzel Ring(Optional)

Refone Code	7000-007-3614SBG4	Brand	Cummins / Volvo	Year	2007-13
Turbo Model	HE561V	Marker Model	Various Trucks	VNT	Y
Turbo OE No.	4309076RX (E0T1R0P0N0C1)	Engine	ISX EGR/ISX1/ISX 07	Cooled	Water
Vehicle OE No.	4956010/4955425 CPL-2732	Displacemnet	15.0L	Rotation	Standard

No.

Model

Part No.

Temperature
Sensor

Rotating
Speed Sensor

Nozzel Ring

Compressor Wheel（mm）

Turbine Wheel（mm）

Nitriding

Cobalt

Nitriding

Inducer

Exducer

Blade

Exducer

Blade

7000-007-3614SBG4

HE561V

Yes

2618A

70.0

111.8/114.5

8/8

86.0

72.0

7000-007-3614SBG5

HE561V

4309076RX(E0T1R1P0N1C0)

Yes

2618A

70.0

111.8/114.5

7/7

86.0

72.0

Related Parts

Turbocharger 7000-007-3614SBG4	Cartridge/Chra 7100-007-3614BG4
Compressor Wheel 7102-007-3614BG4 Inducer (mm): 70.0 Exducer (mm): 111.8/114.5 Blade:：8/8	Turbine Wheel 7101-007-3614 Inducer (mm): 86.0 Exducer (mm): 72.0 Blade: 12
Compressor Housing 7200-007-3614 Inlet: φ127.5 Outlet: φ100.0/87.95	Turbine Housing 7500-007-3614 Inlet: Bolt Outlet: V-band
Bearing Housing 7600-007-3614V Oil Inlet: M14×1.5 Oil Outlet: φ19.0+2-M8-45.0	Nozzle Ring: 7410-007-3614 7412-007-3614 7450-007-3614B
Char Repair Kits

After Service

*High speed VSR well balanced chra

* 1 year unlimited mileage warranty

* REFONE package or customer's package available

* Technology support for any after-service

* Customized upgrading service acceptable
