Product Details

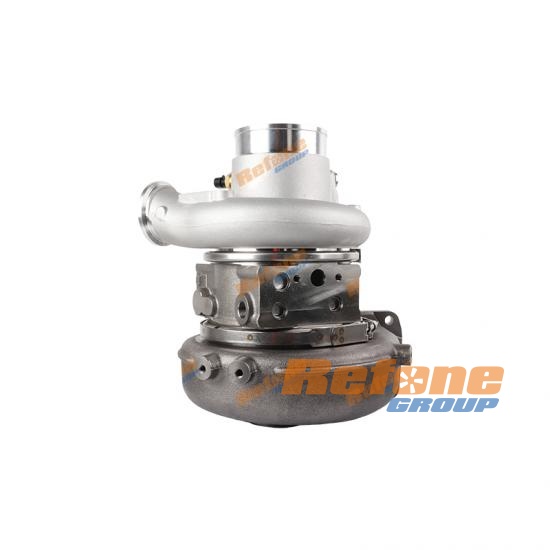

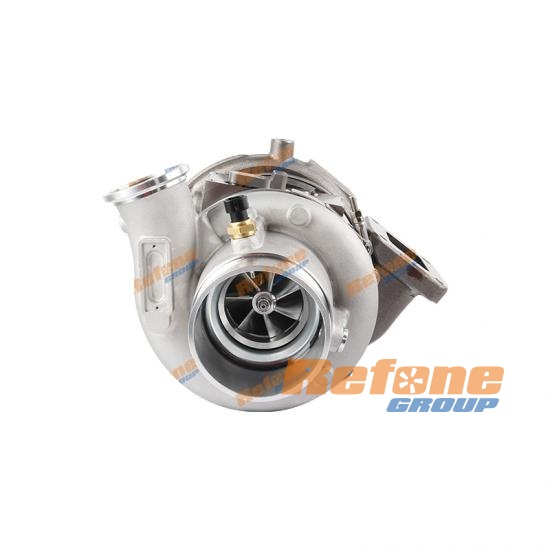

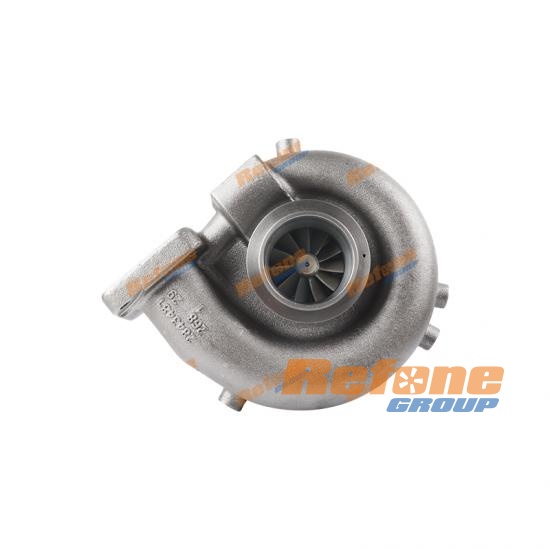

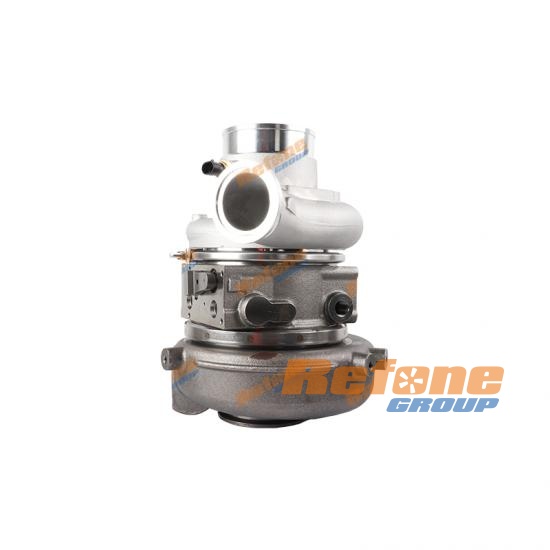

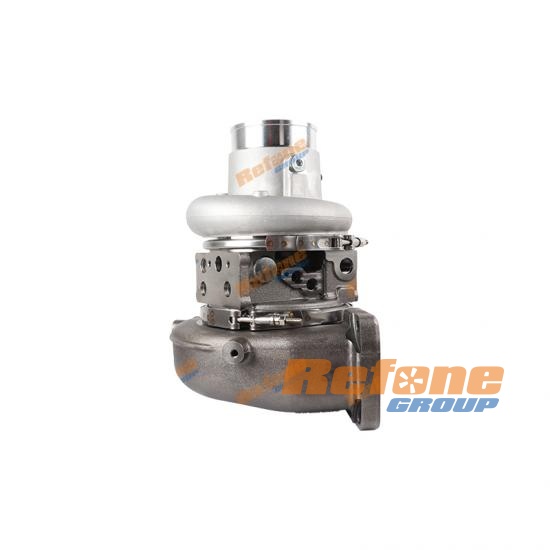

HE451VE 2882111 Turbo for Cummins Various Trucks with ISX/QSX 15.0L

Buy turbo Parts and Cartridge,turbo core for Cummins from Refone Group TURBO, a leading manufacturer and supplier of multiple turbocharger and turbo parts.

REFONE can supply high quality turbocharger Cartridge with high speed VSR300 balancing report.

More than 500+ models of turbo Cartridges are available in stock for quick shipping arrangement.

Besides Refone can also offer CHRA parts,such as shaft wheel,compressor wheel,bearing housing,turbo thrust bearing and turbo journal bearing,shaft wheel,compressor wheel,bearing housing,nozzle ring parts for land rover car.

Description

Billet Wheel(Material Upgrade 2618A)
Inconel 713C Turbine Wheel
Water Cooled
Original Oil Seal
With Temperature Sensor
Nozzel Ring With Cobalt(Optional)
Nitriding Nozzel Ring(Optional)

Refone Code	7000-007-3609BG4	Brand	Cummins	Year	2005-15
Turbo Model	HE451VE	Marker Model	Various Trucks	VNT	Y
Turbo OE No.	2882111 (E0T1R0P0N0C1)	Engine	ISX/QSX	Cooled	Water
Vehicle OE No.	8773568/3783568	Displacemnet	15.0L	Rotation	Standard

No.

Model

Part No.

Temperature
Sensor

Nozzel Ring

Compressor Wheel（mm）

Turbine Wheel（mm）

Nitriding

Cobalt

Material

Inducer

Exducer

Blade

Inducer

Exducer

Blade

7000-007-3609BG2

HE451VE

2882111(E0T1R0P0N1C0)

Yes

2618A

64.0

92.2/93.0

7/7

72.0

67.0

7000-007-3609BG4

HE451VE

2882111(E0T1R0P0N0C1)

Yes

2618A

64.0

92.2/93.0

7/7

72.0

67.0

Related Parts

Turbocharger 7000-007-3609BG4	Cartridge/Chra 7100-007-3609BG4
Compressor Wheel 7102-007-3609BG4 Inducer (mm): 64.0 Exducer (mm): 92.2/93.0 Blade:：7/7	Turbine Wheel 7101-007-3609 Inducer (mm): 72.0 Exducer (mm): 67.0 Blade: 11
Compressor Housing 7200-007-3609V Inlet: φ103.6/101.6 Outlet: φ73.81/64.0	Turbine Housing 7500-007-3609 Inlet: Bolt Outlet: V-band
Bearing Housing 7600-007-3609V Oil Inlet: M14×1.5 Oil Outlet: φ18.0+2-M8-50.8	Nozzle Ring 7410-007-3609 7412-007-3609 7450-007-3609B
Gasket Kit 7010-100-3609	Chra Repair Kits 7106-007-3609
Service Kits 7007-007-3609	Turbo Repair Kits

After Service

*High speed VSR well balanced chra

* 1 year unlimited mileage warranty

* REFONE package or customer's package available

* Technology support for any after-service

* Customized upgrading service acceptable
