Product Details

REFONE K03 5303-970-0354 Turbo for JAC Ruifeng S5 M5 with HFC4GA3-1D EURO IV 2.0L

Buy turbochargers from Refone. a leading manufacturer and supplier of multiple turbocharger and turbo parts, always insist on offering high quality products, good customer service and long-term business relationship.

REFONE can supply 500+ models turbocharger, as well as some Performance turbochargers and Upgrading turbos.

Description

Refone Code	7000-002-3240EB	Brand	JAC	Year	--
Turbo Model	K03	Marker Moder	Ruifeng S5 M5	VNT	--
Turbo OE No.	5303-970-0354	Engine	HFC4GA3-1D EURO IV	Cooled	Water
Vehicle OE No.	1016500GD052	Displacement	2.0L	Rotation	Standard

Features

Billet Wheel(Casting Wheel Optional)
Inconel 713C Turbine Wheel
Water Cooled
With Pressure Relief Actuator

Related Parts

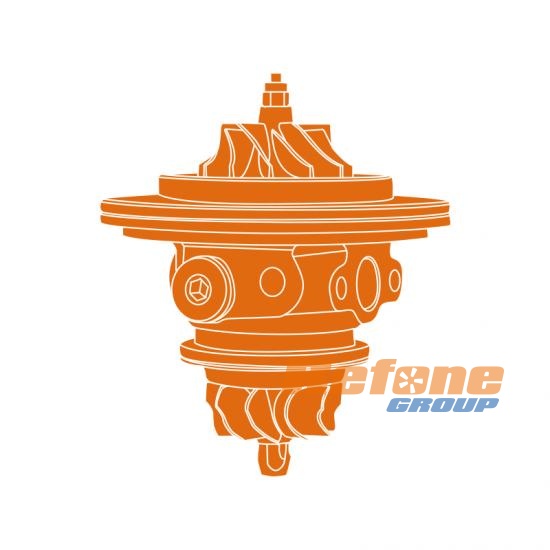

Turbocharger 77000-002-3240EB	Cartridge/Chra 7100-002-3240B

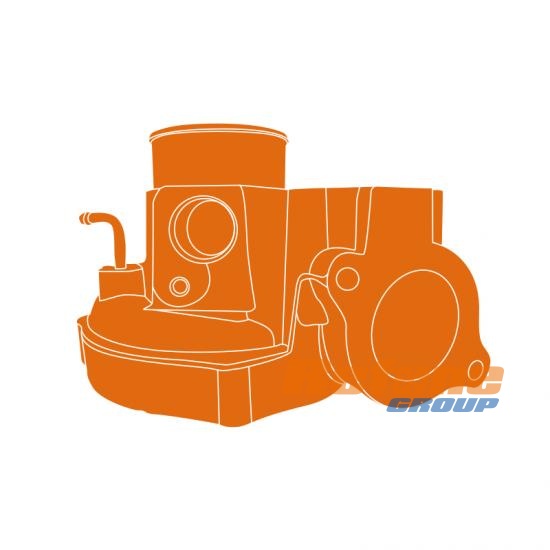

Compressor Housing 7200-002-3240V Inlet: φ48.5/45.0 Outlet: φ54.2/51.7	Turbine Housing 7500-002-3240V Inlet: Bolt Outlet: Bolt
Compressor Wheel 7102-002-3123B Inducer (mm): 35.9 Exducer (mm): 50.0 Blade:：6/6	Turbine Wheel 7101-002-2017 Inducer (mm): 45.0 Exducer (mm): 40.4 Blade: 11
Bearing Housing 7104-002-0068 Oil Inlet: M12×1.5 Oil Outlet: φ16.0+2-M6-38.0	Actuator 7300-002-3240V
Pressure Relief Actuator 7340-002-3240	Gasket Kit 7125-002-0016
Turbo Repair Kits 7106-002-0006R1	Chra Repair Kits 7106-002-0006R2
