Product Details

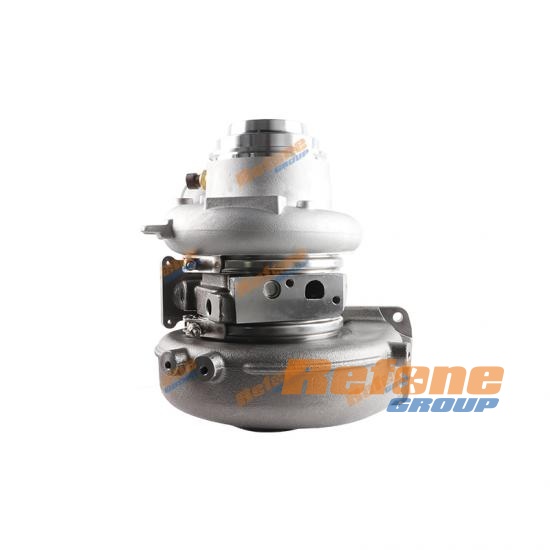

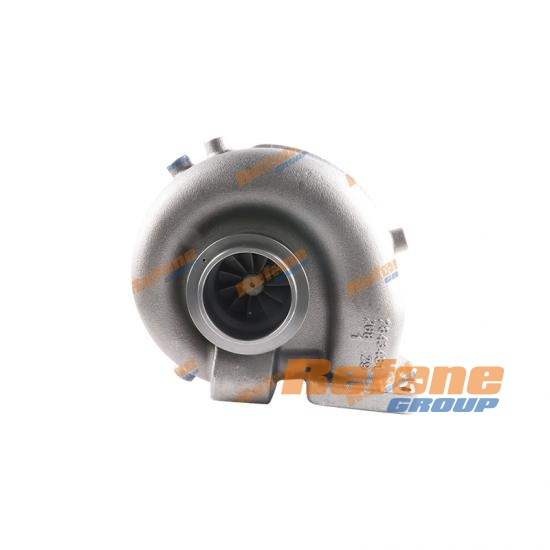

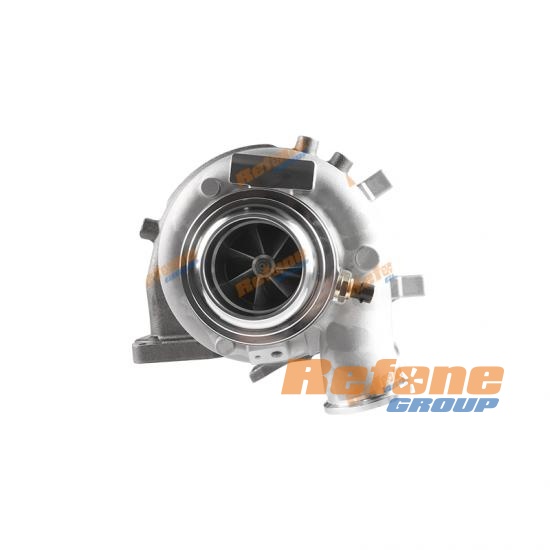

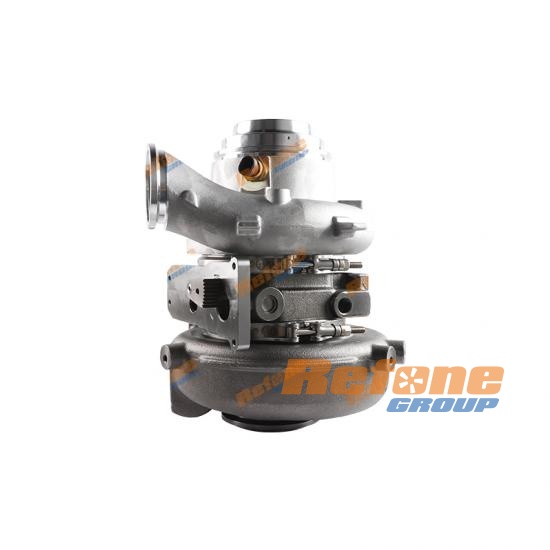

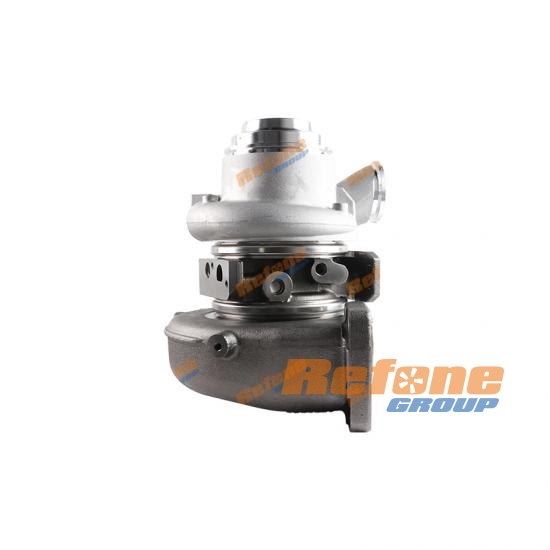

HE400VG 5459711RX/5358483/5358484 Turbo for Cummins with X15 Engine

Buy turbocharger for Cummins Various from Refone, a leading manufacturer and supplier of multiple turbocharger and turbo parts.

REFONE can supply more than 500+ Models turbocharger such as H1C, HX55, HX35, HX40W, HX55W, HX35W etc. as well as some Performance turbochargers and upgrading turbos.

Description

Refone Code	7000-007-3658B	Brand	Cummins	Year	--
Turbo Model	HE400VG	Marker Model	--	VNT	Y
Turbo OE No.	5459711RX/5358483 5358484/5358003RX (E0T1R1P0N0C1）	Engine	X15	Cooled	Water
Vehicle OE No.	--	Dispalcement	--	Rotation	Standard

No.

Model

Part No.

Temperature
Sensor

Rotating
Speed Sensor

Nozzel Ring

Compressor Wheel（mm）

Turbine Wheel（mm）

Nitriding

Cobalt

Nitriding

Inducer

Blade

Inducer

Exducer

Blade

7000-007-3658B

HE400VG

5459711RX(E0T1R1P0N0C1）

Yes

67.0

92.0/93.0

7/7

72.0

67.0

7000-007-3658BG1

HE400VG

5459711RX(E0T1R1P0N1C0）

Yes

67.0

92.0/93.0

7/7

72.0

67.0

--Billet Wheel(Material Upgrade 2618A)
--Inconel 713C Turbine Wheel
--Water Cooled
--Original Oil Seal
--With Temperature Sensor
--With Rotating Speed Sensor
--Nozzel Ring With Cobalt(Optional)
--Nitriding Nozzel Ring(Optional)

Related Parts

Turbocharger 7000-007-3658B	Cartridge/Chra 7100-007-3658B
Turbine Housing 7500-007-3624 Inlet: Bolt Outlet: V-band	Compressor Housing 7200-007-3658V Inlet: φ119.0/111.0 Outlet: φ73.8/64.0
Turbine Wheel 7101-007-3624 Inducer (mm): 72.0 Exducer (mm): 67.0 Blade: 11	Compressor Wheel 7102-007-3658B Inducer (mm): 67.0 Exducer (mm): 92.0/93.0 Blade:：7/7
Bearing Housing 7600-007-3624V Oil Inlet: M12×1.5 Oil Outlet: 20.0×17.5+2-M8-50.8	Nozzle Ring 7410-007-3624 7412-007-3624 7450-007-3609B
Turbo Repair Kits Gasket Kit	Chra Repair Kits 7106-007-3624

After Service

* 1 year unlimited mileage warranty

* REFONE package or customer's package available

* Technology support for any after-service

* Customized upgrading service acceptable
