Product Details

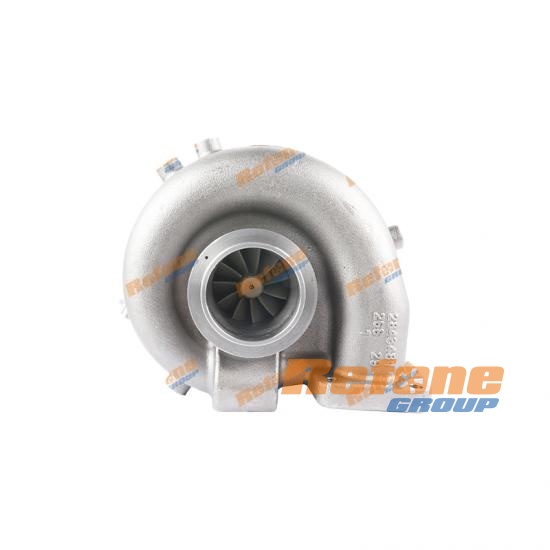

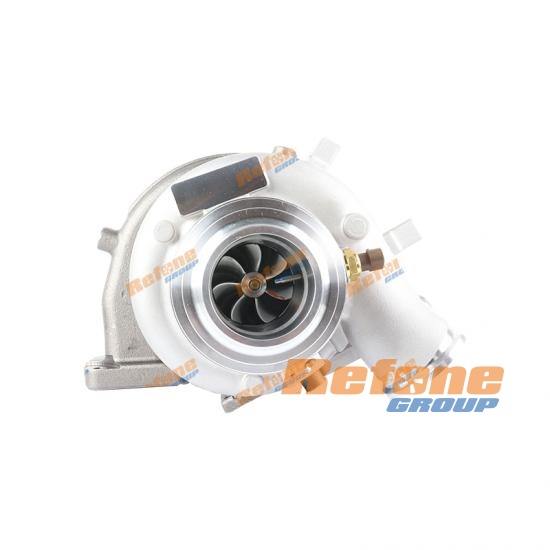

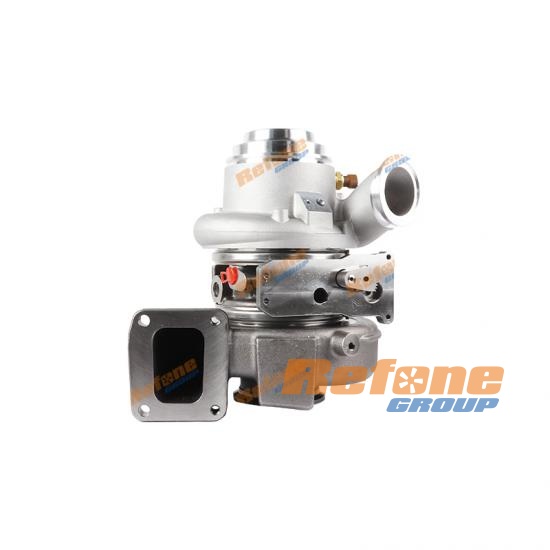

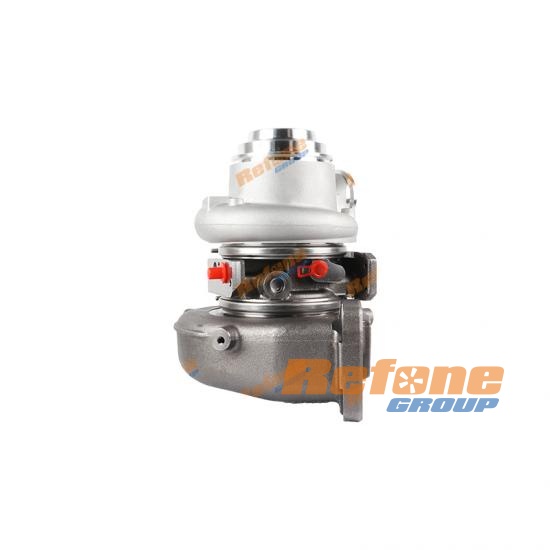

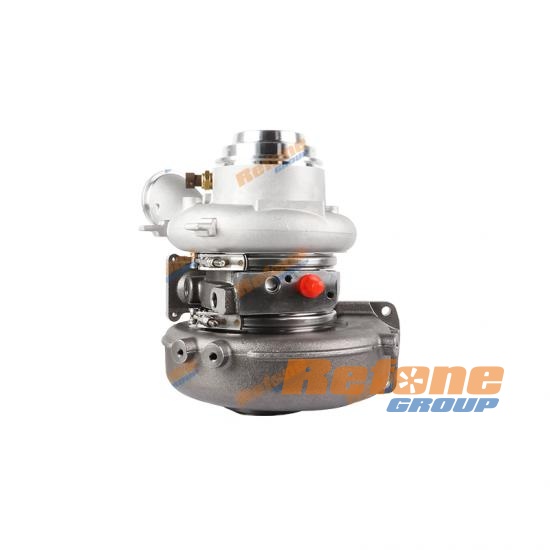

HE400VG 5459710RX Turbo for Cummins Truck with X15 15.0L

Buy turbo Parts and Cartridge,turbo core for Cummins from Refone Group TURBO, a leading manufacturer and supplier of multiple turbocharger and turbo parts.

REFONE can supply high quality turbocharger Cartridge with high speed VSR300 balancing report.

More than 500+ models of turbo Cartridges are available in stock for quick shipping arrangement.

Besides Refone can also offer CHRA parts,such as shaft wheel,compressor wheel,bearing housing,turbo thrust bearing and turbo journal bearing,shaft wheel,compressor wheel,bearing housing,nozzle ring parts for land rover car.

Description

Billet Wheel(Material Upgrade 2618A)
Inconel 713C Turbine Wheel
Water Cooled
Original Oil Seal
With Temperature Sensor
Nozzel Ring With Cobalt(Optional)
Nitriding Nozzel Ring(Optional)

Refone Code	7000-007-3624B	Brand	Cummins	Year	--
Turbo Model	HE400VG	Marker Model	Truck	VNT	Y
Turbo OE No.	5459710RX (E0T1R0P0N0C1)	Engine	X15	Cooled	Water
Vehicle OE No.	--	Displacemnet	15.0L	Rotation	Standard

No.	Model	Part No.	Temperature Sensor	Nozzel Ring		Compressor Wheel（mm）			Turbine Wheel（mm）
No.	Model	Part No.	Temperature Sensor	Nitriding	Cobalt	Inducer	Exducer	Blade	Inducer	Exducer	Blade
7000-007-3624B	HE400VG	5459710RX(E0T1R0P0N0C1)	Yes	--	Yes	63.0	92.0/93.0	7/7	72.0	67.0	11
7000-007-3624BG1	HE400VG	5459710RX(E0T1R0P0N1C0)	Yes	Yes	--	63.0	92.0/93.0	7/7	62.0	67.0	11

Related Parts

Turbocharger 7000-007-3624B	Cartridge/Chra 7100-007-3624B
Turbine Wheel 7101-007-3624 Inducer (mm): 72.0 Exducer (mm): 67.0 Blade: 11	Compressor Wheel 7102-007-3624BG5 Inducer (mm): 63.0 Exducer (mm): 92.0/93.0 Blade:：7/7
Compressor Housing 7200-007-3624V Inlet: φ119.0/111.0 Outlet: φ73.8/64.0	Turbine Housing 7500-007-3624 Inlet: Bolt Outlet: V-band
Bearing Housing 7600-007-3624V Oil Inlet: M12×1.5 Oil Outlet: 20.0x17.5+2-M8-50.8	Nozzle Ring 7410-007-3624 7412-007-3624 7450-007-3609B
Turbo Repair Kits	Gasket Kit
Chra Repair Kits 7106-007-3624

After Service

*High speed VSR well balanced chra

* 1 year unlimited mileage warranty

* REFONE package or customer's package available

* Technology support for any after-service

* Customized upgrading service acceptable
