How to identify a Turbo

How to identify a Turbo

24 Jul 2019

There are always three ways to identify a turbo - ① part number,② OEM number, ③vehicle application + fitted engine + turbo pictures.


Part number

The part number is defined by original turbo manufacturers. There are different naming rules of part number for different turbo brands.

For example:

KKK(BorgWarner) turbo part numbers- 4+3+4 pattern - such as 5303-970-0268,5304-970-0054,5435-970-0002,

Garrett turbo part numbers- 6+4 pattern - such as 787556-0017,812971-0002,715924-0001

Toyota turbo part numbers- 5+5 pattern - such as 17201-0L040,17201-11070,17201-30160

OEM Number

The OEM number is defined by the vehicle manufacturers, so it usually have several OEM numbers of one turbo.

You can identify the turbo by any OEM Number.

For example:

14411-EB70A /14411-EB70C/14411-EB70B corresponds to this part number 767720-0002 of Nissan.

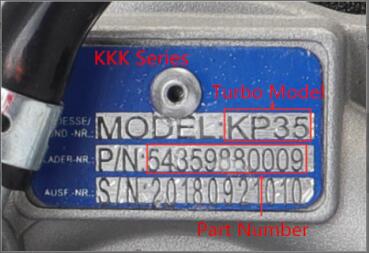

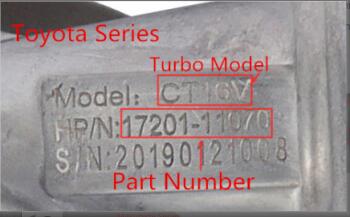

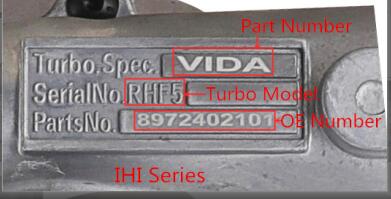

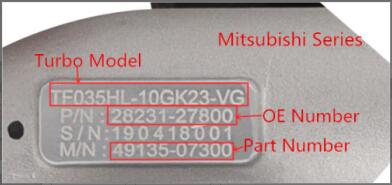

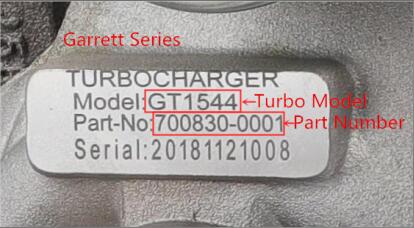

Usually, you can check the part number or oem number on the label (name plate) of a turbo compressor housing The following are some pictures to help you easier understanding where you can find the part number or OEM number on a turbo.



If the part number and OE number are both not available , we also can try to identify the turbo based on information of Vehicle , Engine and Turbo images.


Above are mainly ways to identify your turbo if you have an inquiry at www.refoneturbo.com.
